CD50CNF06NO
Capacitive Level Detector, Type CD50, M30, TRIPLESHIELD™, 6 mm, NPN, 20 to 265 Vac, Pre-Wired

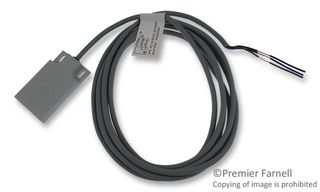

Image is for illustrative purposes only. Please refer to product description.
2 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $55.900 |
| 5+ | $53.170 |
| 10+ | $51.530 |
| 25+ | $49.890 |
Price for:Each
Minimum: 1
Multiple: 1
$55.90
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCARLO GAVAZZI
Manufacturer Part NoCD50CNF06NO
Newark Part No.27R0378
Technical Datasheet
Sensor TypeCapacitive Proximity Sensor
Sensing Distance Min-
Sensing Distance Max6mm
Sensor Output TypeNPN
Supply Voltage Min10VDC
Supply Voltage Max30VDC
Sensor Case / Package-
Sensor TerminalsCable
Sensor Body MaterialPBT (Polybutylene Terephthalate)
IP RatingIP67
Operating Temperature Min0°C
Operating Temperature Max60°C
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The CD50CNF06NO is a Capacitive Level Detector with open collector PNP transistor output. The capacitive level detector operates up to a distance of 6mm sensing distance is fixed and works through a nonmetallic wall. The sensor is available in a 10 to 30VDC version. The sensing distance is fixed and works through a nonmetallic wall of up to 20mm of thickness.
- For water storage tanks in mini-pools and whirlpools
- Detection of excess water in the whirlpool tub
- Safety device to control the operation of the pump
- Mounting by screws or glued on the outside of any non-metallic tank
- Gray PVC cable connection
- IP67 Protection rating
Applications
Sensing & Instrumentation
Technical Specifications
Sensor Type
Capacitive Proximity Sensor
Sensing Distance Max
6mm
Supply Voltage Min
10VDC
Sensor Case / Package
-
Sensor Body Material
PBT (Polybutylene Terephthalate)
Operating Temperature Min
0°C
Product Range
-
Sensing Distance Min
-
Sensor Output Type
NPN
Supply Voltage Max
30VDC
Sensor Terminals
Cable
IP Rating
IP67
Operating Temperature Max
60°C
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
