FC6814775

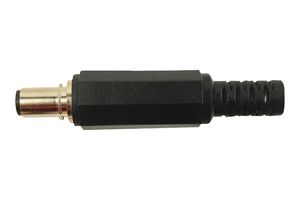

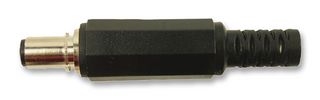

DC Power Connector, Plug, 2.5 mm, 9.5 mm, Cable Mount, Solder
Image is for illustrative purposes only. Please refer to product description.
ManufacturerCLIFF ELECTRONIC COMPONENTS
Manufacturer Part NoFC6814775
Newark Part No.94X0661
Product RangeLocking DC Plug & Socket Series
Technical Datasheet
1 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $6.810 |
| 10+ | $5.030 |
| 100+ | $3.980 |
| 250+ | $3.790 |
| 500+ | $3.720 |
| 1000+ | $3.650 |
Price for:Each
Minimum: 1
Multiple: 1
$6.81
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCLIFF ELECTRONIC COMPONENTS
Manufacturer Part NoFC6814775
Newark Part No.94X0661
Product RangeLocking DC Plug & Socket Series
Technical Datasheet
Current Rating-
Pin Diameter2.5mm
Barrel Length9.5mm
Connector MountingCable Mount
Contact Termination TypeSolder
Barrel Inner Diameter-
Barrel Outer Diameter5mm
Voltage Rating16V
Product RangeLocking DC Plug & Socket Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The FC6814775 is a 5A black PCB switched DC Power Socket with 2.5mm diameter pin. This DC-9A series socket with plastic body. It is designed with toughness and durability.
- Maximum contact resistance is 30mohm
- Maximum current rating of 2A at 16VDC
- Minimum insulation resistance of 100Mohm at 500VDC
- Dielectric withstand voltage is 500VAC for 1 minute
Applications
Signal Processing, Power Management
Technical Specifications
Gender
Plug
Pin Diameter
2.5mm
Connector Mounting
Cable Mount
Barrel Inner Diameter
-
Voltage Rating
16V
SVHC
No SVHC (21-Jan-2025)
Current Rating
-
Barrel Length
9.5mm
Contact Termination Type
Solder
Barrel Outer Diameter
5mm
Product Range
Locking DC Plug & Socket Series
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
