B66365G0500X187
FERRITECORE, N87, ETD44/22/15, 438NH

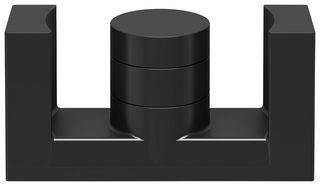

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEPCOS
Manufacturer Part NoB66365G0500X187
Newark Part No.02AC3508
Product RangeB66365 Series
Technical Datasheet
171 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $4.860 |
| 10+ | $3.390 |
| 25+ | $2.920 |
| 50+ | $2.780 |
| 100+ | $2.630 |
| 500+ | $2.520 |
Price for:Each
Minimum: 1
Multiple: 1
$4.86
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEPCOS
Manufacturer Part NoB66365G0500X187
Newark Part No.02AC3508
Product RangeB66365 Series
Technical Datasheet
Core TypeETD
Core SizeETD44/22/15
Core Material GradeN87
For Use WithSMPS Transformers
Effective Magnetic Path Length103mm
Ae Effective Cross Section Area173mm²
Inductance Factor Al438nH
Product RangeB66365 Series
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Core Type
ETD
Core Material Grade
N87
Effective Magnetic Path Length
103mm
Inductance Factor Al
438nH
SVHC
No SVHC (21-Jan-2025)
Core Size
ETD44/22/15
For Use With
SMPS Transformers
Ae Effective Cross Section Area
173mm²
Product Range
B66365 Series
Technical Docs (2)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
