GAN3R2-100CBEAZ
Gallium Nitride (GaN) Transistor, 100 V, 60 A, 0.0024 ohm, 9.2 nC, WLCSP, Surface Mount

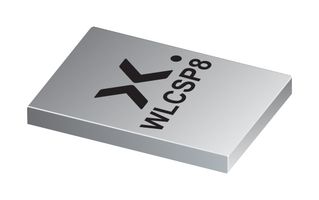

Image is for illustrative purposes only. Please refer to product description.
1,425 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $6.040 |
| 10+ | $4.350 |
| 25+ | $4.030 |
| 50+ | $3.710 |
| 100+ | $3.390 |
| 250+ | $3.310 |
| 500+ | $3.230 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$6.04
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNEXPERIA
Manufacturer Part NoGAN3R2-100CBEAZ
Newark Part No.74AK7566
Technical Datasheet
Drain Source Voltage Vds100V
Continuous Drain Current Id60A
Drain Source On State Resistance0.0024ohm
Typical Gate Charge9.2nC
Transistor Case StyleWLCSP
Transistor MountingSurface Mount
No. of Pins8Pins
Product Range-
Qualification-
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Drain Source Voltage Vds
100V
Drain Source On State Resistance
0.0024ohm
Transistor Case Style
WLCSP
No. of Pins
8Pins
Qualification
-
Continuous Drain Current Id
60A
Typical Gate Charge
9.2nC
Transistor Mounting
Surface Mount
Product Range
-
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
