UCY2G151MHD
Electrolytic Capacitor, CY Series, 150 µF, 400 V, ± 20%, Radial Leaded, 10000 hours @ 105°C, Polar

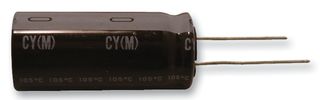

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNICHICON
Manufacturer Part NoUCY2G151MHD
Newark Part No.08N2749
Product RangeUCY Series
Technical Datasheet
608 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $5.950 |
| 10+ | $4.420 |
| 25+ | $4.110 |
| 50+ | $3.780 |
| 100+ | $3.500 |
| 500+ | $3.200 |
Price for:Each
Minimum: 1
Multiple: 1
$5.95
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNICHICON
Manufacturer Part NoUCY2G151MHD
Newark Part No.08N2749
Product RangeUCY Series
Technical Datasheet
Capacitance150µF
Voltage Rating400V
Voltage(DC)400V
Capacitance Tolerance± 20%
Capacitor TerminalsRadial Leaded
Lifetime @ Temperature10000 hours @ 105°C
PolarityPolar
Diameter18mm
Capacitor Case / PackageRadial Leaded
Series NameCY
Lead Spacing7.5mm
Height40mm
Product Diameter18mm
Product Length-
Product Width-
Product Height40mm
Product RangeUCY Series
ESR-
Ripple Current1.03A
Operating Temperature Min-40°C
Operating Temperature Max105°C
Qualification-
Automotive Qualification Standard-
RoHS Phthalates CompliantTo Be Advised
Product Overview
The CY series miniature Aluminium Electrolytic Capacitor withstands load life of 8000 to 10000 hours at 105°C. It features long life, high ripple current and high reliability. This capacitor is smaller size than CS series. It is suited for ballast application.
- -40 to 105°C Temperature range
- 160 to 400V Rated voltage range
- 6.8 to 560µF Rated capacitance range
Technical Specifications
Capacitance
150µF
Voltage(DC)
400V
Capacitor Terminals
Radial Leaded
Polarity
Polar
Capacitor Case / Package
Radial Leaded
Lead Spacing
7.5mm
Product Diameter
18mm
Product Width
-
Product Range
UCY Series
Ripple Current
1.03A
Operating Temperature Max
105°C
Automotive Qualification Standard
-
SVHC
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
Voltage Rating
400V
Capacitance Tolerance
± 20%
Lifetime @ Temperature
10000 hours @ 105°C
Diameter
18mm
Series Name
CY
Height
40mm
Product Length
-
Product Height
40mm
ESR
-
Operating Temperature Min
-40°C
Qualification
-
RoHS Phthalates Compliant
To Be Advised
Technical Docs (2)
Alternatives for UCY2G151MHD
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
