MC9S12XHZ512CAG
16 Bit Microcontroller, HCS12x Family S12XH Series Microcontrollers, HCS12X, 16 bit, 80 MHz, 512 KB

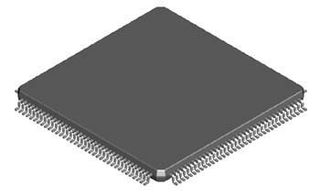

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNXP
Manufacturer Part NoMC9S12XHZ512CAG
Newark Part No.54M7219
Product RangeHCS12x Family S12XH Series Microcontrollers
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
| Quantity | Price |
|---|---|
| 1+ | $27.630 |
Price for:Each
Minimum: 300
Multiple: 300
$8,289.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNXP
Manufacturer Part NoMC9S12XHZ512CAG
Newark Part No.54M7219
Product RangeHCS12x Family S12XH Series Microcontrollers
Technical Datasheet
Base NumberHCS12/S12X
Product RangeHCS12x Family S12XH Series Microcontrollers
Device CoreHCS12X
No. of Bits16bit
Data Bus Width16 bit
Data Bus Width16bit
Operating Frequency Max80MHz
CPU Speed80MHz
Program Memory Size512KB
No. of Pins144Pins
IC Case / PackageLQFP
MCU Case StyleLQFP
No. of I/O's117I/O's
InterfacesCAN, I2C, SCI, SPI
RAM Memory Size32KB
Embedded Interface TypeCAN, I2C, SCI, SPI
ADC Channels16Channels
ADC Resolution10Bit
Supply Voltage Min4.5V
MCU FamilyHCS12x
Supply Voltage Max5.5V
MCU SeriesS12XH
Operating Temperature Min-40°C
Operating Temperature Max85°C
IC MountingSurface Mount
QualificationAEC-Q100
MSLMSL 3 - 168 hours
SVHCNo SVHC (27-Jun-2024)
