55A1111-22-9-9

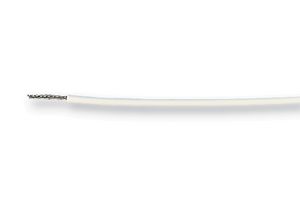

HOOK-UP WIRE, 22AWG, WHITE, 100M
Image is for illustrative purposes only. Please refer to product description.
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part No55A1111-22-9-9
Newark Part No.50AC7994
Product RangeSpec 55 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
| Quantity | Price |
|---|---|
| 1+ | $383.120 |
| 100+ | $373.120 |
| 200+ | $367.790 |
Price for:Spool of 100
Minimum: 1
Multiple: 1
$383.12
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part No55A1111-22-9-9
Newark Part No.50AC7994
Product RangeSpec 55 Series
Technical Datasheet
Jacket MaterialETFE
Jacket ColorWhite
Wire Gauge22AWG
Conductor Area CSA0.33mm²
Reel Length (Imperial)328ft
Reel Length (Metric)100m
No. of Max Strands x Strand Size19 x 34AWG
Voltage Rating600V
Conductor MaterialTinned Copper
External Diameter2.06mm
Approval Specification-
Product RangeSpec 55 Series
SVHCTo Be Advised
Technical Specifications
Jacket Material
ETFE
Wire Gauge
22AWG
Reel Length (Imperial)
328ft
No. of Max Strands x Strand Size
19 x 34AWG
Conductor Material
Tinned Copper
Approval Specification
-
SVHC
To Be Advised
Jacket Color
White
Conductor Area CSA
0.33mm²
Reel Length (Metric)
100m
Voltage Rating
600V
External Diameter
2.06mm
Product Range
Spec 55 Series
Technical Docs (3)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
