60.7265-22 25M
Wire, Flexiplast-2V Test Lead, 14 AWG, 2 mm , 1 kV, Red, 82 ft, 25 m RoHS Compliant: Yes

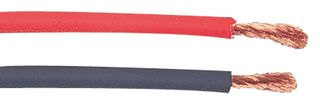

Image is for illustrative purposes only. Please refer to product description.
2 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $48.340 |
| 10+ | $48.340 |
| 30+ | $48.340 |
| 50+ | $48.340 |
| 100+ | $48.340 |
| 500+ | $48.340 |
Price for:Each
Minimum: 1
Multiple: 1
$48.34
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTAUBLI
Manufacturer Part No60.7265-22 25M
Newark Part No.07J2083
Technical Datasheet
Jacket MaterialTPE
Jacket ColorRed
Wire Gauge14AWG
Conductor Area CSA2mm²
Reel Length (Imperial)82ft
Reel Length (Metric)25m
Operating Temperature Max105°C
No. of Max Strands x Strand Size525 x 0.07mm
Voltage Rating1kV
Conductor MaterialCopper
External Diameter3.9mm
Approval Specification-
Product Range-
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Jacket Material
TPE
Wire Gauge
14AWG
Reel Length (Imperial)
82ft
Operating Temperature Max
105°C
Voltage Rating
1kV
External Diameter
3.9mm
Product Range
-
Jacket Color
Red
Conductor Area CSA
2mm²
Reel Length (Metric)
25m
No. of Max Strands x Strand Size
525 x 0.07mm
Conductor Material
Copper
Approval Specification
-
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Associated Products
5 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
