712ACF
DC Power Connector, In Line, Flex Relief, Jack, 5 A, 2.5 mm, 5.5 mm, Cable Mount, Solder

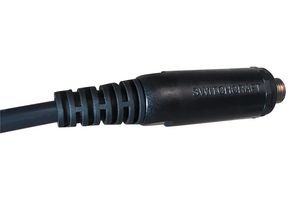

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part No712ACF
Newark Part No.43AC1931
Product RangeCF Series
Technical Datasheet
426 In Stock
600 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $5.890 |
| 10+ | $4.750 |
| 25+ | $4.370 |
| 50+ | $4.170 |
| 100+ | $4.080 |
Price for:Each
Minimum: 1
Multiple: 1
$5.89
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part No712ACF
Newark Part No.43AC1931
Product RangeCF Series
Technical Datasheet
GenderJack
Current Rating5A
Pin Diameter2.5mm
Barrel Length5.5mm
Connector MountingCable Mount
Contact Termination TypeSolder
Barrel Inner Diameter5.84mm
Barrel Outer Diameter14.61mm
Voltage Rating24V
Product RangeCF Series
SVHCLead
Product Overview
- Cable mount DC power jack in a rugged housing
- Designed for easy field installation
- Built to withstand challenging applications (not IP rated)
- Compatible with industry standard Switchcraft plugs
- Lifecycles 5000 min.
- Current rating 5A
- Cable range 5.6mm to 6.4mm
- Split pin design for firm mate
- 5.5mm bushing length
- Made in the USA
Applications
Audio, Broadcast, Medical, Safety, Security, Maintenance & Repair, Low Voltage
Technical Specifications
Gender
Jack
Pin Diameter
2.5mm
Connector Mounting
Cable Mount
Barrel Inner Diameter
5.84mm
Voltage Rating
24V
SVHC
Lead
Current Rating
5A
Barrel Length
5.5mm
Contact Termination Type
Solder
Barrel Outer Diameter
14.61mm
Product Range
CF Series
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
