721A
DC Power Connector, Jack, 5 A, 2.1 mm, Panel Mount, Solder

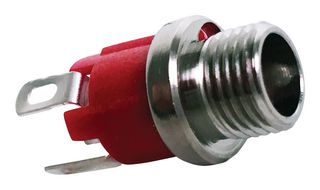

Image is for illustrative purposes only. Please refer to product description.
1,844 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.780 |
| 10+ | $3.040 |
| 25+ | $2.790 |
| 50+ | $2.680 |
| 100+ | $2.610 |
Price for:Each
Minimum: 1
Multiple: 1
$3.78
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part No721A
Newark Part No.49AC1396
Technical Datasheet
GenderJack
Current Rating5A
Pin Diameter2.1mm
Barrel Length-
Connector MountingPanel Mount
Contact Termination TypeSolder
Barrel Inner Diameter-
Barrel Outer Diameter-
Voltage Rating30VDC
Product Range-
SVHCLead
Product Overview
721A is a 0.084" (2.1mm) pin, solder lugs termination DC power Jack.
- Dual conductor
- Panel mounting type and solder termination style
- Copper alloy contact, terminal, sleeve and body material, silver contact plating
- 0.01ohm contact resistance, 10000Mohm insulation resistance
- 500V dielectric withstanding voltage, 24V voltage rating, 5A current rating
- Single closed circuit-schematic
- 10000 cycle life cycles
- Threaded coupling locking style
- Temperature range from -55°C to +85°C
- Features shunted and locking
Technical Specifications
Gender
Jack
Pin Diameter
2.1mm
Connector Mounting
Panel Mount
Barrel Inner Diameter
-
Voltage Rating
30VDC
SVHC
Lead
Current Rating
5A
Barrel Length
-
Contact Termination Type
Solder
Barrel Outer Diameter
-
Product Range
-
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
