                                                                                                  LM234Z-6/NOPB

                                                                                                  Current Regulator, 1?A to 10mA Output, 30V Supply, 400mW, TO-92-3

                                                                                                  Date/Lot Code

                                                                                                  TEXAS INSTRUMENTS
                                                                                                  Image is for illustrative purposes only. Please refer to product description.

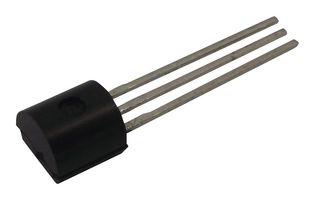

                                                                                                  TEXAS INSTRUMENTS LM234Z-6/NOPB
                                                                                                  ManufacturerTEXAS INSTRUMENTS
                                                                                                  Manufacturer Part NoLM234Z-6/NOPB
                                                                                                  Newark Part No.28AH3086
                                                                                                  See all Technical Docs
                                                                                                  188 In Stock

                                                                                                  Need more?

                                                                                                  Delivery in 2-4 Business Days(UK stock)
                                                                                                  Order before 9pm EST standard shipping
                                                                                                  QuantityPrice
                                                                                                  1+$2.030
                                                                                                  10+$1.900
                                                                                                  25+$1.800
                                                                                                  50+$1.720
                                                                                                  100+$1.640
                                                                                                  250+$1.570
                                                                                                  500+$1.550
                                                                                                  Price for:Each
                                                                                                  Minimum: 1
                                                                                                  Multiple: 1
                                                                                                  $2.03
                                                                                                  Enter Your Part No/Line Note
                                                                                                  Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                                                                                                  This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                                                                                                  Product Information

                                                                                                  TEXAS INSTRUMENTS
                                                                                                  ManufacturerTEXAS INSTRUMENTS
                                                                                                  Manufacturer Part NoLM234Z-6/NOPB
                                                                                                  Newark Part No.28AH3086
                                                                                                  IC TypeCurrent Source
                                                                                                  Supply Voltage Min1V
                                                                                                  Supply Voltage Max40V
                                                                                                  Output Current Range Min-
                                                                                                  Output Current Range Max10mA
                                                                                                  IC Case / PackageTO-92
                                                                                                  No. of Pins3 Pin
                                                                                                  Initial Accuracy3%
                                                                                                  Operating Temperature Range-25°C to +100°C
                                                                                                  Qualification-
                                                                                                  Product Range-
                                                                                                  MSLMSL 1 - Unlimited
                                                                                                  SVHCNo SVHC (27-Jun-2018)
                                                                                                  Current Regulator Case StyleTO-92
                                                                                                  Forward Current If10mA
                                                                                                  Forward Current If(AV)-
                                                                                                  Forward Voltage30V
                                                                                                  Power Dissipation Pd400mW

                                                                                                  Product Overview

                                                                                                  LM234Z-6/NOPB is a 3-terminal adjustable current source featuring a 10,000:1 range in operating current, excellent current regulation, and a wide dynamic voltage range of 1V to 40V. Current is established with one external resistor and no other parts are required. The initial current accuracy is ±3%. The LM134 is a true floating current source with no separate power supply connections. In addition, reverse-applied voltages of up to 20V will draw only a few dozen microamperes of current, allowing the devices to act as both a rectifier and current source in AC applications. The sense voltage used to establish the operating current in the LM134 is 64mV at 25°C and is directly proportional to absolute temperature (°K). Applications for the current sources include bias networks, surge protection, low power reference, ramp generation, LED driver, and temperature sensing.

                                                                                                  • Operates from 1V to 40V, true 2-terminal operation
                                                                                                  • 3% max set current error at (10μA ≤ ISET ≤ 1mA)
                                                                                                  • Effective shunt capacitance is 15pF typical
                                                                                                  • Programmable from 1μA to 10mA
                                                                                                  • Average change in set current with input voltage is 0.02%/V typ at (1.5 ≤ V+ ≤ 5V)
                                                                                                  • Operating temperature range from -25°C to 100°C
                                                                                                  • 3-pin TO-92 package

                                                                                                  Technical Specifications

                                                                                                  IC Type

                                                                                                  Current Source

                                                                                                  Supply Voltage Max

                                                                                                  40V

                                                                                                  Output Current Range Max

                                                                                                  10mA

                                                                                                  No. of Pins

                                                                                                  3 Pin

                                                                                                  Operating Temperature Range

                                                                                                  -25°C to +100°C

                                                                                                  Product Range

                                                                                                  -

                                                                                                  SVHC

                                                                                                  No SVHC (27-Jun-2018)

                                                                                                  Forward Current If

                                                                                                  10mA

                                                                                                  Forward Voltage

                                                                                                  30V

                                                                                                  Supply Voltage Min

                                                                                                  1V

                                                                                                  Output Current Range Min

                                                                                                  -

                                                                                                  IC Case / Package

                                                                                                  TO-92

                                                                                                  Initial Accuracy

                                                                                                  3%

                                                                                                  Qualification

                                                                                                  -

                                                                                                  MSL

                                                                                                  MSL 1 - Unlimited

                                                                                                  Current Regulator Case Style

                                                                                                  TO-92

                                                                                                  Forward Current If(AV)

                                                                                                  -

                                                                                                  Power Dissipation Pd

                                                                                                  400mW

                                                                                                  Technical Docs (1)

                                                                                                  Product Change Notice EN

                                                                                                  Legislation and Environmental

                                                                                                  US ECCN:EAR99
                                                                                                  EU ECCN:Unknown
                                                                                                  RoHS Compliant:Yes

                                                                                                  RoHS

                                                                                                  RoHS Phthalates Compliant:Yes

                                                                                                  RoHS

                                                                                                  SVHC:No SVHC (27-Jun-2018)
