BC10-QF5.5-RN6X2
Capacitive Proximity Sensor, Rectangular, 10 mm, NPN-NC, 10 to 30 Vdc

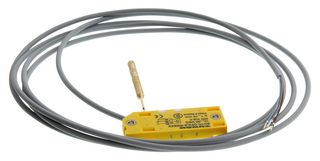

Image is for illustrative purposes only. Please refer to product description.
15 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $142.590 |
Price for:Each
Minimum: 1
Multiple: 1
$142.59
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTURCK
Manufacturer Part NoBC10-QF5.5-RN6X2
Newark Part No.35R6960
Technical Datasheet
Sensor Type-
Sensing Distance Min-
Sensing Distance Max10mm
Sensor Output TypeNPN
Supply Voltage Min10VDC
Supply Voltage Max30VDC
Sensor Case / PackageModule
Sensor TerminalsCable
Sensor Body MaterialPlastic
IP RatingIP67
Operating Temperature Min-25°C
Operating Temperature Max70°C
Product Range-
SVHCLead
Product Overview
BC10-QF5.5-RN6X2 is a capacitive proximity sensor. It is designed for non-contact and wear-free detection of electrically conductive as well as nonconductive metal objects. Approved by UL (E210608).
- Height 5.5mm rectangular, plastic PP housing, large active face marked for correct installation
- Fine adjustment via potentiometer
- 10mm rated switching distance (flush/non-flush) and 3-wire NC contact, NPN output cable connection
- ≤ (0.72 × Sn) secured operating distance, 20% typ temperature drift
- Repeat accuracy is ≤ 2% of full scale, Ø 3mm, LifYY-11Y, PUR, 2m cable quality
- 30VDC operating voltage, ≤ 200mA DC rated operational current
- 0.1KHz switching frequency, 0.1KHz switching frequency
- Short-circuit protection
- ≤0.5kV isolation test voltage, ≤ 1.8V voltage drop at Io
- Dimension is 54 x 20.3 x 5.5mm, ambient temperature range from -25 to +70°C
Technical Specifications
Sensor Type
-
Sensing Distance Max
10mm
Supply Voltage Min
10VDC
Sensor Case / Package
Module
Sensor Body Material
Plastic
Operating Temperature Min
-25°C
Product Range
-
Sensing Distance Min
-
Sensor Output Type
NPN
Supply Voltage Max
30VDC
Sensor Terminals
Cable
IP Rating
IP67
Operating Temperature Max
70°C
SVHC
Lead
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
