IHLP6767DZER1R5M11
Power Inductor (SMD), 1.5 µH, 31 A, Shielded, 21 A, IHLP-6767DZ-11 Series

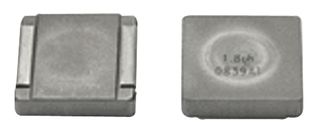

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part NoIHLP6767DZER1R5M11
Newark Part No.01T1358
Product RangeIHLP-6767DZ-11 Series
Technical Datasheet
Packaging Options
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
| Quantity | Price |
|---|---|
| 25+ | $2.920 |
Price for:Each (Supplied on Cut Tape)
Minimum: 250
Multiple: 250
$730.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoIHLP6767DZER1R5M11
Newark Part No.01T1358
Product RangeIHLP-6767DZ-11 Series
Technical Datasheet
Inductance1.5µH
RMS Current (Irms)31A
Inductor ConstructionShielded
Product RangeIHLP-6767DZ-11 Series
Saturation Current (Isat)21A
Power Inductor Case17.15mm x 17.15mm x 4mm
Inductor Case / Package-
DC Resistance Max0.00343ohm
Inductance Tolerance± 20%
Product Length17.15mm
Product Width17.15mm
Product Height4mm
Technical Specifications
Inductance
1.5µH
Inductor Construction
Shielded
Saturation Current (Isat)
21A
Inductor Case / Package
-
Inductance Tolerance
± 20%
Product Width
17.15mm
SVHC
No SVHC (07-Nov-2024)
RMS Current (Irms)
31A
Product Range
IHLP-6767DZ-11 Series
Power Inductor Case
17.15mm x 17.15mm x 4mm
DC Resistance Max
0.00343ohm
Product Length
17.15mm
Product Height
4mm
Alternatives for IHLP6767DZER1R5M11
1 Product Found
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
