MWTC-D-K-915/N -

Conector Termopar, Miniatura, Inalámbrico, Frecuencia ISM USA/Canada, Tipo K

NEWPORT ELECTRONICS MWTC-D-K-915/N

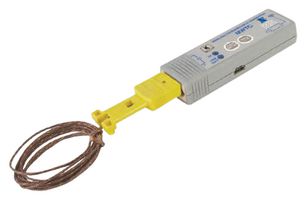

La imagen solo tiene fines ilustrativos. Consulte la descripción del producto.

No. Parte Fabricante:
MWTC-D-K-915/N
No. Parte Newark
04X9772
Hoja de datos técnicos:
(EN)
Ver todos los documentos técnicos

Información del producto

:
-
:
K
Encontrar productos similares Elija y modifique los atributos anteriores para encontrar productos similares.

Resumen del producto

The MWTC-D-K-915/N is a miniature wireless Thermocouple Connector for use with 915MHz wireless K-type thermocouples. The new MWTC wireless smart connector series features a compact, battery-powered thermocouple connector that can transmit or record temperature data back to a mating receiver up to 90m (300') away. During the initial set-up, the connector can be set to transmit, transmit and record or record only at a pre-set time interval. The recording can begin either at power up or at a pre-set time and date. Multiple wireless connectors (up to 48 channels) can transmit to one MWTC-REC receiver. Stored data can be easily downloaded to a PC via direct USB connection. The user can record either 65400 process temperature data points or 32700 process and ambient temperature data points.
  • Built-in cold junction compensation and linearization
  • Records at power-up or at a pre-determined time and date
  • USB (one cable included) PC interface
  • Logging/transmit time interval of 2 seconds to 2 minutes, set by software
  • <5mW (7dBm) RF power output

Aplicaciones

Instrumentación y Medida
