HEDS-9100#A00

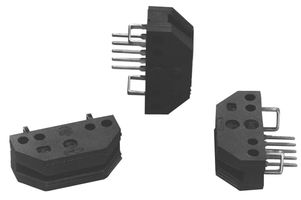

HEDS-9100#A00 is a HEDS-9100 series, 2 channel optical incremental encoder module. This is a high performance, low cost, encoder module when used with a code wheel, this module detects rotary position. The modules consist of a lensed (LED) source and a detector IC enclosed in a small C-shaped plastic package. Due to a highly collimated light source and unique photodetector array, this module is extremely tolerant to mounting misalignment. Suitable for printers, plotters, tape drives and factory automation equipment applications.

• Easy to mount
• Small size
• Operating temperature range from -40°C to 100°C
• No signal adjustment required
• TTL compatible
• Single 5V supply
• Two channel quadrature output
• 500 PPR encoder resolutions

Warnings

ESD sensitive.Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Notes

Avago Technologies encoders are not recommended for use in safety applications.
