1636 03

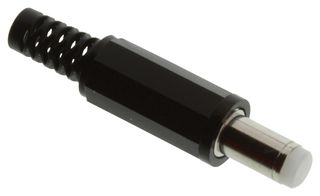

DC Power Connector, Plug, 2 A, 9.5 mm, Cable Mount, Solder
Image is for illustrative purposes only. Please refer to product description.
409 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1.560 |
| 10+ | $1.510 |
| 25+ | $1.410 |
| 50+ | $1.330 |
| 100+ | $1.220 |
Price for:Each
Minimum: 1
Multiple: 1
$1.56
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLUMBERG
Manufacturer Part No1636 03
Newark Part No.98K5988
Technical Datasheet
Current Rating2A
Pin Diameter-
Barrel Length9.5mm
Connector MountingCable Mount
Contact Termination TypeSolder
Barrel Inner Diameter1.7mm
Barrel Outer Diameter4.75mm
Voltage Rating10.5V
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 1636 03 is a 2-pole low-voltage Power Supply Plug with solder contact termination, PC insulating body, nickel-plated CuZn contact, POM insulation and PP housing, 2A/10.5VDC rated. Straight version, with solder eyes and bend protection. This plug is ideal for cable mount.
- 500V/60s Test voltage
- ≥100MΩ Insulation resistance
- According to JEITA RC-5320A JSAP3
Applications
Power Management
Technical Specifications
Gender
Plug
Pin Diameter
-
Connector Mounting
Cable Mount
Barrel Inner Diameter
1.7mm
Voltage Rating
10.5V
SVHC
No SVHC (21-Jan-2025)
Current Rating
2A
Barrel Length
9.5mm
Contact Termination Type
Solder
Barrel Outer Diameter
4.75mm
Product Range
-
Technical Docs (3)
Alternatives for 1636 03
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
