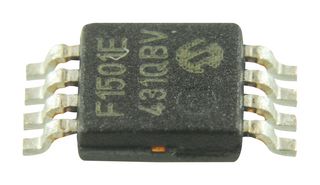

PIC12F1501-E/MS

The PIC12F1501-E/MS is an enhanced mid-range PIC12 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 1.75kB of addressable program memory size, 64bytes of data memory size, 6 general-purpose I/O pins, one comparator, 4-channel 10-bit analog-to-digital (A/D) converter and one 5-bit digital-to-analog (D/A) converter. This device operates at a maximum frequency of 20MHz wide operating voltage of 1.8 to 5.5V.

• 49 (14-bit wide) easy instructions to learn
• 16 level hardware stack
• 2 (16-bit) file select registers
• Hardware interrupt handling with content save
• Programmable brown-out reset (BOR)
• Power on reset (POR)
• 32kHz to 16MHz internal oscillator
• Watch dog timer (WDT)
• Internal voltage reference (Bandgap)
• Two 8-bit digital timers
• One 16-bit digital timer
• Four stand alone PWM
• 2x Configurable logic cell modules (CLC)
• 1x Complementary waveform generator (CWG)/Complementary output generator (COG)
• Numerically controlled oscillator (NCO)
• 4x Capacitive touch channels
• In-Circuit Serial Programming™ (ICSP™)

Applications

Automotive, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
