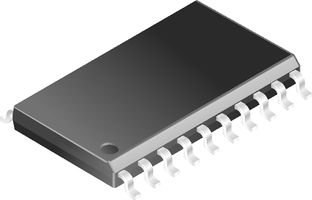

RFPIC12F675F-I/SS

The RFPIC12F675F-I/SS is a mid-range PIC12 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture and a 434MHz ASK/FSK RF transmitter. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 1.75kB of addressable program memory size, 64bytes of data memory size, 6 general-purpose I/O pins, one comparators and 4-channel 10-bit analog-to-digital (A/D) converter. This device operates at a wide operating voltage of 2 to 5.5V.

• 35 (14-bit wide) easy instructions to learn
• 8 level hardware stack
• 1 (9-bit) file select register
• Hardware interrupt handling
• Programmable pull-up resistors
• ICD support
• 4 oscillator selections including 4MHz RC oscillator with programmable calibration & power-on reset
• up to 10dBm transmit output power
• up to 40kbps data rate
• Programmable code protection
• High current sink/source for direct LED drive
• In-Circuit Serial Programming™ (ICSP™)

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security, Sensing & Instrumentation
