61.7615-22

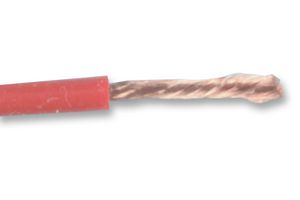

Wire, Silistromr Hi-Flex, 4 AWG, 25 mm , 1.5 kV, Red, 32 ft, 10 m RoHS Compliant: Yes
Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTAUBLI
Manufacturer Part No61.7615-22
Newark Part No.72C3153
Product RangeSiliStrom Series
Technical Datasheet
5 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $529.070 |
| 5+ | $487.750 |
| 10+ | $456.740 |
| 25+ | $425.740 |
| 50+ | $384.400 |
Price for:Each
Minimum: 1
Multiple: 1
$529.07
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTAUBLI
Manufacturer Part No61.7615-22
Newark Part No.72C3153
Product RangeSiliStrom Series
Technical Datasheet
Jacket MaterialSilicone Rubber
Jacket ColorRed
Wire Gauge4AWG
Conductor Area CSA25mm²
Reel Length (Imperial)32ft
Reel Length (Metric)10m
Operating Temperature Max90°C
No. of Max Strands x Strand Size6496 x 0.07mm
Voltage Rating1.5kV
Conductor MaterialCopper
External Diameter11.9mm
Approval Specification-
Product RangeSiliStrom Series
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Jacket Material
Silicone Rubber
Wire Gauge
4AWG
Reel Length (Imperial)
32ft
Operating Temperature Max
90°C
Voltage Rating
1.5kV
External Diameter
11.9mm
Product Range
SiliStrom Series
Jacket Color
Red
Conductor Area CSA
25mm²
Reel Length (Metric)
10m
No. of Max Strands x Strand Size
6496 x 0.07mm
Conductor Material
Copper
Approval Specification
-
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
