PLT0603Z5000AST5
SMD Chip Resistor, 500 ohm, ± 0.05%, 150 mW, 0603 [1608 Metric], Thin Film

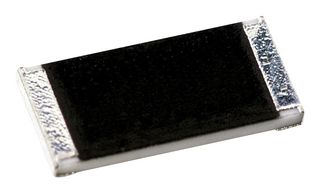

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part NoPLT0603Z5000AST5
Newark Part No.65AK0620
Product RangePLT Series
Technical Datasheet
Packaging Options
399 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.270 |
| 10+ | $3.050 |
| 25+ | $2.880 |
| 50+ | $2.690 |
| 100+ | $2.520 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$3.27
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoPLT0603Z5000AST5
Newark Part No.65AK0620
Product RangePLT Series
Technical Datasheet
Resistance500ohm
Resistance Tolerance± 0.05%
Power Rating150mW
Resistor Case / Package0603 [1608 Metric]
Resistor TechnologyThin Film
Resistor TypePrecision, Flame Proof
Product RangePLT Series
Temperature Coefficient± 5ppm/°C
Voltage Rating75V
Product Length1.626mm
Product Width0.813mm
Operating Temperature Min-55°C
Operating Temperature Max125°C
Qualification-
Technical Specifications
Resistance
500ohm
Power Rating
150mW
Resistor Technology
Thin Film
Product Range
PLT Series
Voltage Rating
75V
Product Width
0.813mm
Operating Temperature Max
125°C
SVHC
No SVHC (17-Jan-2023)
Resistance Tolerance
± 0.05%
Resistor Case / Package
0603 [1608 Metric]
Resistor Type
Precision, Flame Proof
Temperature Coefficient
± 5ppm/°C
Product Length
1.626mm
Operating Temperature Min
-55°C
Qualification
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
