PCE-5129G2-00A4U
Single Board Computer, Q170, Intel Core i7/i5/i3/Pentium/Celeron, 32GB, 3.9GHz, 0°C to 60°C

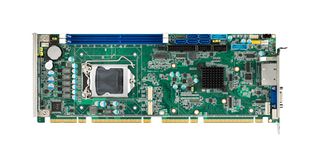

Image is for illustrative purposes only. Please refer to product description.
No Longer Available
Product Information
ManufacturerADVANTECH
Manufacturer Part NoPCE-5129G2-00A4U
Newark Part No.25AM3192
Technical Datasheet
Processor Core TypeIntel Core i7/i5/i3/Pentium/Celeron
Core NumberQ170
Silicon Family Name-
Processor Speed3.9GHz
RAM Memory Size32GB
Kit ContentsSBC Q170, 2x Data Cable, Y-Cable, COM Cable Kit, USB2.0 Cable Kit, Warranty Card, Manual, Utility CD
InterfacesEthernet, IrDA, LAN, PCIe, SATA, USB
Operating SystemWindows 10
Operating Temperature Range0°C to 60°C
Fanless-
Product Overview
PCE-5129G2-00A4U is a 6th Generation Intel® Core™ processor-based platform system host board with triple display.
- Q170 chipset and LGA1151 socket
- PCE-5BXX and PCE-7BXX backplane
- 2 LAN, VGA, 2 COM, 5 SATA III, 1 M.2, 7 USB 2.0, 5 USB 3.0
- 5 SATA (SW Raid 0,1,5,10)
- Supports out-of-band remote management with AMT 11.0
- Up to 32GB of dual-channel (non-ECC) DDR4 1866/2133MHz
- Supports Advantech’s LPC modules, SUSI Access, and embedded software APIs
- Dimension (L x H) is 13.3" x 4.8"
- 10/100/1000Mbps interface, LAN 1/2: Intel® I219-LM/Intel® I210-AT controller, 2x RJ45 CONN w/ LED
- Operating temperature range from 0 to 60°C
Contents
SBC, Serial ATA HDD data cable x2, Keyboard and mouse Y-cable x1, 1-port COM cable kit x1, 2-port USB 2.0 cable kit x1, Warranty card x1, Startup manual x1, Utility CD.
Technical Specifications
Processor Core Type
Intel Core i7/i5/i3/Pentium/Celeron
Silicon Family Name
-
RAM Memory Size
32GB
Interfaces
Ethernet, IrDA, LAN, PCIe, SATA, USB
Operating Temperature Range
0°C to 60°C
Core Number
Q170
Processor Speed
3.9GHz
Kit Contents
SBC Q170, 2x Data Cable, Y-Cable, COM Cable Kit, USB2.0 Cable Kit, Warranty Card, Manual, Utility CD
Operating System
Windows 10
Fanless
-
Technical Docs (2)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
