Binding Post, 552 Series, 16 A, 1 kV, Nickel Plated Contacts, Panel Mount, Black
Image is for illustrative purposes only. Please refer to product description.
ManufacturerDELTRON COMPONENTS
Manufacturer Part No552-0100
Newark Part No.45M6867
Product Range552 Series
337 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.130 |
| 10+ | $2.620 |
| 100+ | $2.380 |
| 500+ | $2.160 |
| 1000+ | $1.970 |
| 2000+ | $1.890 |
| 5000+ | $1.820 |
| 10000+ | $1.740 |
Price for:Each
Minimum: 1
Multiple: 1
$3.13
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerDELTRON COMPONENTS
Manufacturer Part No552-0100
Newark Part No.45M6867
Product Range552 Series
Product Range552 Series
Current Rating16A
Voltage Rating1kV
Contact PlatingNickel Plated Contacts
Connector MountingPanel Mount
Connector ColourBlack
Contact MaterialBrass
SVHCNo SVHC (10-Jun-2022)
Product Overview

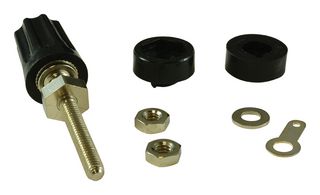

The 552-0100 is a black insulated terminal Binding Post with 4mm socket, panel mounting, acetal cap/insulation, bright nickel-plated brass contact/insert/bush/locknut/washer and silver-plated brass solder tag. Panel insulating bushes have a location keyway, maximum panel thickness 12.7mm. Threaded termination supplied with solder tag washer.
- 4BA (3.6mm or 0.141") Thread size
Applications
Test & Measurement
Technical Specifications
Product Range
552 Series
Voltage Rating
1kV
Connector Mounting
Panel Mount
Contact Material
Brass
Current Rating
16A
Contact Plating
Nickel Plated Contacts
Connector Colour
Black
SVHC
No SVHC (10-Jun-2022)
