DIN 41612 Connector, Type H15 Series, 15 Contacts, Receptacle, 10.16 mm, 2 Row, z + d

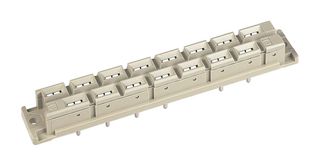

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHARTING
Manufacturer Part No09062152821
Newark Part No.79K4461
Product RangeType H15 Series
16 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $14.560 |
| 10+ | $12.220 |
| 25+ | $11.620 |
| 50+ | $11.260 |
| 100+ | $10.900 |
Price for:Each
Minimum: 1
Multiple: 1
$14.56
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHARTING
Manufacturer Part No09062152821
Newark Part No.79K4461
Product RangeType H15 Series
Product RangeType H15 Series
No. of Contacts15Contacts
Pitch Spacing10.16mm
No. of Rows2 Row
Rows Loadedz + d
Contact PlatingSilver Plated Contacts
Contact MaterialCopper Alloy
No. of Mating Cycles500
SVHCNo SVHC (08-Jul-2021)
Product Overview
The 0906 215 2821 from Harting is a low profile DIN power female connector with solder pins. It is a 10.16mm pitch, 15 positions, DIN 41 612 type H15 female connector.
- Performance level 1 according to IEC 60 603-2 standard
- Maximum working current is 15A
- Temperature range from -55°C to 125°C
- Thermoplastic resin glass fibre filled moulding
- Copper alloy with gold plated contacts
Applications
Industrial
Technical Specifications
Product Range
Type H15 Series
Gender
Receptacle
No. of Rows
2 Row
Contact Plating
Silver Plated Contacts
No. of Mating Cycles
500
No. of Contacts
15Contacts
Pitch Spacing
10.16mm
Rows Loaded
z + d
Contact Material
Copper Alloy
SVHC
No SVHC (08-Jul-2021)
Technical Docs (1)
Associated Products
6 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
