F417MR12W1M1HB76BPSA1
Silicon Carbide MOSFET, FourPack, N Channel, 45 A, 1.2 kV, 0.0162 ohm, Module

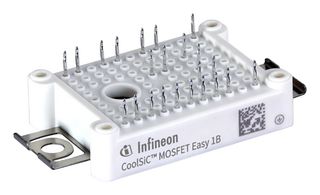

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | F417MR12W1M1HB76BPSA1Copy |
| Manufacturer Standard Lead Time | 18 weeks |
| Newark Part No. | 87AK9875 |
| Product Range | EasyPACK Series |
| Your Part Number | |
| Technical Datasheet |
4 In Stock
Need more?
Delivery in 4-6 Business Days(UK stock)
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $102.110 |
| 5+ | $93.920 |
| 10+ | $85.740 |
| 25+ | $77.540 |
Price for:Each
Minimum: 1
Multiple: 1
$102.11
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | F417MR12W1M1HB76BPSA1Copy |
| Manufacturer Standard Lead Time | 18 weeks |
| Newark Part No. | 87AK9875 |
| Product Range | EasyPACK Series |
| Technical Datasheet | |
| MOSFET Module Configuration | FourPack |
| Channel Type | N Channel |
| Continuous Drain Current Id | 45A |
| Drain Source Voltage Vds | 1.2kV |
| Drain Source On State Resistance | 0.0162ohm |
| Transistor Case Style | Module |
| No. of Pins | 22Pins |
| Rds(on) Test Voltage | 18V |
| Gate Source Threshold Voltage Max | 5.15V |
| Power Dissipation | 20mW |
| Operating Temperature Max | 175°C |
| Product Range | EasyPACK Series |
| SVHC | No SVHC (25-Jun-2025) |
Technical Specifications
| MOSFET Module Configuration | FourPack |
|---|---|
| Continuous Drain Current Id | 45A |
| Drain Source On State Resistance | 0.0162ohm |
| No. of Pins | 22Pins |
| Gate Source Threshold Voltage Max | 5.15V |
| Operating Temperature Max | 175°C |
| SVHC | No SVHC (25-Jun-2025) |
| Channel Type | N Channel |
|---|---|
| Drain Source Voltage Vds | 1.2kV |
| Transistor Case Style | Module |
| Rds(on) Test Voltage | 18V |
| Power Dissipation | 20mW |
| Product Range | EasyPACK Series |
Technical Docs (1)
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
