                      1. Home
                      2. Embedded Computers, Education & Maker Boards
                      3. FPGA / CPLD
                      4. Embedded Development Kits - FPGA / CPLD
                      Print Page

                      LFMXO5-100T-EVN

                      Development Kit, LFMXO5-100-BBG400, MachXO5T-NX, FPGA, CABGA-400

                      LATTICE SEMICONDUCTOR LFMXO5-100T-EVN

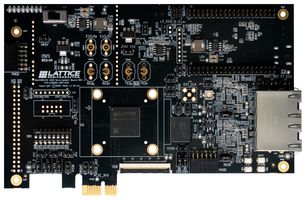

                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerLATTICE SEMICONDUCTOR
                      Manufacturer Part NoLFMXO5-100T-EVN
                      Newark Part No.79AK4718
                      Available to Order
                      Deliveries start from 7/25/2025.

                      Notify me when back in stock

                      QuantityPrice
                      1+$406.740
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      $406.74
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerLATTICE SEMICONDUCTOR
                      Manufacturer Part NoLFMXO5-100T-EVN
                      Newark Part No.79AK4718
                      Silicon ManufacturerLattice Semiconductor
                      No. of Bits-
                      Silicon Family NameMachXO5T-NX
                      Core ArchitectureFPGA
                      Core Sub-Architecture-
                      Silicon Core NumberLFMXO5-100-BBG400
                      Kit ContentsDev Brd LFMXO5-100-BBG400 w/Demo Design, 12V AC/DC Power Adapter, Mini USB Cable, Quick Start Guide
                      Product Range-
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      LFMXO5-100T-EVN is a MachXO5T-NX development board. The MachXO5T-NX Development board features the LFMXO5-100T device in a 400-ball caBGA package. This device offers a variety of features and programmability that enhances Secure Control PLD functionality with Multiple Boot capabilities. Its cryptographic engine supports user-mode security features. Along with the cryptographic engine, numerous system functions are included such as four PLLs and 3,744 kbits of embedded RAM plus hardened implementations of I2C and SPI, LFMXO5-100T FPGAs feature one hard PCIe link layer IP block which supports PCIe Gen1, Gen2 with 1 or 2 x1 configuration, with flexible, high performance I/O support numerous single-ended and differential standards including LPDDR4 controller and SLVS.

                      • Two Gbe PHY RJ45 connectors, with SGMII PHY support
                      • Supports LPDDR4 upto 1066Mbps, x16 bits
                      • Supports PCIe Gen2 x1 edge connector
                      • Versa headers bridge with Lattice ASC demo board to support L-ASC10
                      • GPIO interface with PMOD, Arduino and Raspberry Pi boards

                      Contents

                      MachXO5T-NX development board, 12V AC/DC adapter and international plug adapters, USB cable for programming via PC (USB-A to Mini-B), Quick start guide, Lattice Radiant software download information.

                      Technical Specifications

                      Silicon Manufacturer

                      Lattice Semiconductor

                      Silicon Family Name

                      MachXO5T-NX

                      Core Sub-Architecture

                      -

                      Kit Contents

                      Dev Brd LFMXO5-100-BBG400 w/Demo Design, 12V AC/DC Power Adapter, Mini USB Cable, Quick Start Guide

                      SVHC

                      No SVHC (21-Jan-2025)

                      No. of Bits

                      -

                      Core Architecture

                      FPGA

                      Silicon Core Number

                      LFMXO5-100-BBG400

                      Product Range

                      -

                      Legislation and Environmental

                      US ECCN:4A994I
                      EU ECCN:Unknown
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (21-Jan-2025)
