TDGL013

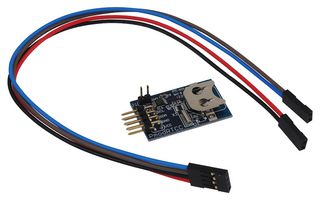

Development Board, Digilent PmodRTCC Peripheral Module, TDGL013
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | TDGL013Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Newark Part No. | 90T9379 |
| Your Part Number |
Need more?
| Quantity | Price |
|---|---|
| 1+ | $22.490 |
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | TDGL013Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Newark Part No. | 90T9379 |
| Silicon Manufacturer | Microchip |
| Silicon Core Number | - |
| Kit Application Type | Clock & Timing |
| Application Sub Type | Real Time Clock |
| Kit Contents | Digilent PmodRTCC Peripheral Module, MTE Cable |
| Product Range | - |
| SVHC | No SVHC (15-Jan-2018) |
Product Overview
The TDGL013 is a Digilent PmodRTCC Peripheral Module is a real-time clock/calendar powered by Microchip's MCP79410. It is compatible with Digilent's PIC32-based Cerebot development boards (TDGL008, TDGL009, TDGL010) and can be easily connected to any system using standard IDC connectors and cables. An I²C™ interface is used to communicate with the module. The PmodRTCC provides two available alarms, 128 bytes EEPROM and 64 bytes SRAM. The multi-function pin can be accessed via a two pin header.
- Two alarms
- 128 Bytes EEPROM
- 64 Bytes SRAM
- Multifunction pin can be accessed via a two pin header
Applications
Embedded Design & Development, Clock & Timing
Contents
Digilent PmodRTCC peripheral module, Coin cell battery holder and 10" 4-pin MTE cable.
Technical Specifications
| Silicon Manufacturer | Microchip |
|---|---|
| Kit Application Type | Clock & Timing |
| Kit Contents | Digilent PmodRTCC Peripheral Module, MTE Cable |
| SVHC | No SVHC (15-Jan-2018) |
| Silicon Core Number | - |
|---|---|
| Application Sub Type | Real Time Clock |
| Product Range | - |
Technical Docs (3)
Associated Products
3 Products Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Not applicable |
| RoHS Phthalates Compliant: | Not applicable |
| SVHC: | No SVHC (15-Jan-2018) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Product traceability |
