CWT-3809-W2
Solder Sleeve, with Lead, Terminator, 8.7 mm, Green, Polyolefin, 42 mm

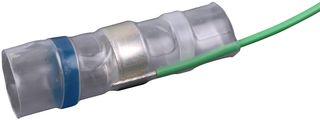

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part NoCWT-3809-W2
Newark Part No.60K7314
Product RangeCWT Series
79 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.690 |
| 10+ | $2.190 |
| 25+ | $2.120 |
| 50+ | $2.060 |
| 100+ | $2.000 |
| 500+ | $1.830 |
Price for:Each
Minimum: 1
Multiple: 1
$2.69
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part NoCWT-3809-W2
Newark Part No.60K7314
Product RangeCWT Series
Connector TypeTerminator
Internal Diameter8.7mm
Insulator ColourGreen
Insulator MaterialPolyolefin
Insulator Length42mm
Wire Gauge-
Product RangeCWT Series
SVHCCadmium
Product Overview
The CWT-3809-W2 is a green heat shrinkable solder sleeve Shield Terminator made of XL polyethylene with tin-plating. The shield/braid terminators designed for use in low temperature applications. The terminator provides an environmentally sealed, insulated and encapsulated solder connection for a variety of applications. Transparent insulation sleeve provides encapsulation, inspectability, strain relief and insulation. It is used for discrete terminating of wires to component terminals.
- Pre-fluxed solder preform provides a controlled soldering process
- One piece design provides easy installation
- Quality control temperature indicators
- 22AWG Green
- -65 to 200°C Temperature range
Applications
Industrial, Commercial
Technical Specifications
Connector Type
Terminator
Insulator Colour
Green
Insulator Length
42mm
Product Range
CWT Series
Internal Diameter
8.7mm
Insulator Material
Polyolefin
Wire Gauge
-
SVHC
Cadmium
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:To be advised
SVHC:Cadmium
