8250-6005
D Sub Connector, Tin & Dimple, DB50, Standard, Plug, 8200 Series, 50 Contacts, DD, IDC / IDT

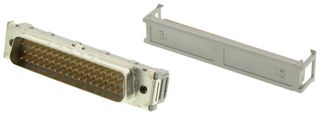

Image is for illustrative purposes only. Please refer to product description.
Manufacturer3M
Manufacturer Part No8250-6005
Newark Part No.46F4829
Product Range8200 Series
Also Known AsGTIN UPC EAN: 04001895144660 DE610006699
Technical Datasheet
118 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $43.060 |
| 10+ | $38.740 |
| 25+ | $37.290 |
| 50+ | $35.030 |
| 100+ | $34.000 |
| 250+ | $31.930 |
| 500+ | $30.910 |
Price for:Each
Minimum: 1
Multiple: 1
$43.06
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
Manufacturer3M
Manufacturer Part No8250-6005
Newark Part No.46F4829
Product Range8200 Series
Also Known AsGTIN UPC EAN: 04001895144660 DE610006699
Technical Datasheet
D Sub Connector TypeStandard
Product Range8200 Series
No. of Contacts50Contacts
D Sub Shell SizeDD
Contact Termination TypeIDC / IDT
Connector MountingCable Mount
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector Body MaterialSteel Body
SVHCTo Be Advised
Product Overview
The 8250-6005 is a 50-way D Sub Plug, 4 to 40 UNC mounting and IDC/IDT termination. This 8250 series D-sub connector is glass filled polyester (PBT) insulated, open cover, lower insertion/withdrawal force than other 50 position products. Shell made of steel and bright nickel-plated finish.
- Grey colour
- UL94V-0 Flammability rating
- 1A Current rating
- <gt/>1 x 10⁹Ω at 500VDC Insulation resistance
- -55 to 105°C Temperature rating
Applications
Industrial
Technical Specifications
D Sub Connector Type
Standard
Product Range
8200 Series
D Sub Shell Size
DD
Connector Mounting
Cable Mount
Contact Plating
Gold Plated Contacts
SVHC
To Be Advised
Gender
Plug
No. of Contacts
50Contacts
Contact Termination Type
IDC / IDT
Contact Material
Copper Alloy
Connector Body Material
Steel Body
Technical Docs (2)
Alternatives for 8250-6005
2 Products Found
Associated Products
7 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
