ARK1125H2401-CT
Embedded Computer, N200, 16GB, 1GHz, 4-Core, -30°C to +60°C
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $1,001.000 |
Price for:Each
Minimum: 1
Multiple: 1
$1,001.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerADVANTECH
Manufacturer Part NoARK1125H2401-CT
Newark Part No.09AN7514
Technical Datasheet
Processor Core Type-
Core NumberN200
Silicon Family NameN Series
Processor Speed1GHz
RAM Memory Size16GB
Kit ContentsEmbedded Computer N200, Wrench, 4Pin/6Pin Terminal Blocks, C14 Lockable DC Plug 62368, User Manual
InterfacesCANBus, Ethernet, RS-232/422/485, USB
Operating SystemUbuntu Linux, Windows 10 Enterprise
Operating Temperature Range-30°C to +60°C
FanlessYes
Product Overview

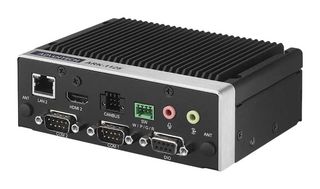

ARK1125H2401-CT is an ARK-1125H Intel® processor N200 QC SoC with dual HDMI/ dual LAN/ four USB palm size fanless box PC.
- DDR5-4800 SO-DIMM memory support up 16GB
- Dual HDMI independent display support 4K resolution
- M.2 E Key and B Key for storage and wireless module installation
- TPM on board for system security
- Extended operating temperature range from -30 to 60°C
- 12V lockable DC jack power input
- CB, UL, CCC, BSMI, UKCA certified
- CANBus, Ethernet, RS-232/422/485, USB interface
- 1GHz processor speed
- Ubuntu Linux, Windows 10 Enterprise operating system
Contents
Embedded computer N200, Wrench, 4pin/6pin terminal blocks, C14 lockable DC plug 62368, User manual.
Technical Specifications
Processor Core Type
-
Silicon Family Name
N Series
RAM Memory Size
16GB
Interfaces
CANBus, Ethernet, RS-232/422/485, USB
Operating Temperature Range
-30°C to +60°C
Core Number
N200
Processor Speed
1GHz
Kit Contents
Embedded Computer N200, Wrench, 4Pin/6Pin Terminal Blocks, C14 Lockable DC Plug 62368, User Manual
Operating System
Ubuntu Linux, Windows 10 Enterprise
Fanless
Yes
