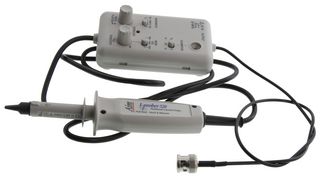

IPROBER 520
Current Probe, BNC Plug, Probe Tip, 20 A, 10 mA, Oscilloscopes
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAIM-TTI INSTRUMENTS
Manufacturer Part NoIPROBER 520
Newark Part No.04X9921
Technical Datasheet
4 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $973.080 |
Price for:Each
Minimum: 1
Multiple: 1
$973.08
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAIM-TTI INSTRUMENTS
Manufacturer Part NoIPROBER 520
Newark Part No.04X9921
Technical Datasheet
Meter Side ConnectorBNC Plug
Probe Side ConnectorProbe Tip
Current Range Max20A
Current Range Min10mA
For Use WithOscilloscopes
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The Aim I-prober 520 is a unique current measurement device. Measurement of current normally requires it to be passed through a closed magnetic loop, typically using a split clamp device. Whereas this is suitable for individual wires, it is of no use for measuring current in PCB tracks. The I-Prober 520 uses positional H-field measurement. By placing the insulated tip of the probe onto a PCB track, the current flowing in the track can be observed and measured. The I-Prober 520 is supplied with a clip-on toroid assembly which converts it into a closed magnetic circuit probe for measuring current within a wire.
- Current measurement from isolated probing of conductor
- Dynamic range of 10mA to 20A peak to peak
- Wide bandwidth of DC to 5MHz
- Low noise equivalent to less than 6mA rms
- Safety rated to 300V Cat II
- Suitable for connection to any oscilloscope
- High accuracy general purpose H-field probe
- Convertible into "closed magnetic circuit" current probe
Technical Specifications
Meter Side Connector
BNC Plug
Current Range Max
20A
For Use With
Oscilloscopes
SVHC
No SVHC (21-Jan-2025)
Probe Side Connector
Probe Tip
Current Range Min
10mA
Product Range
-
