TG120

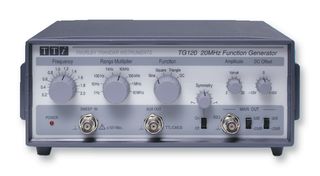

Function Generator, 1 Channel, 20 MHz
Image is for illustrative purposes only. Please refer to product description.
No Longer Available
Product Information
ManufacturerAIM-TTI INSTRUMENTS
Manufacturer Part NoTG120
Newark Part No.06X3424
Technical Datasheet
Signal Generator TypeFunction
No. of Channels1 Channel
Product Range-
Bandwidth20MHz
Signal Generator ModulationFM
Manufacturer Warranty3 Years
Plug TypeUS
SVHCTo Be Advised
Product Overview
The TG120 function generator is one of the most versatile instruments available. It can generate a variety of precision waveshapes over a range of frequencies from mHz to MHz. It can provide a wide range of controlled amplitudes from a low impedance source and maintain constant amplitude as the frequency is varied. Voltage control of frequency allows FM modulation to be introduced or can provide a swept frequency source for such tasks as frequency response testing.
- 20MHz dial set function generator
- 0.2Hz to 20MHz frequency range
- Sine, square and triangle waveforms plus dc
- 10mV to 20V pk-pk from 50 Ohms
- DC offset control with zero detent
- Variable symmetry control
- External sweep input
Applications
Sensing & Instrumentation, Signal Processing, Test & Measurement
Technical Specifications
Signal Generator Type
Function
Product Range
-
Signal Generator Modulation
FM
Plug Type
US
No. of Channels
1 Channel
Bandwidth
20MHz
Manufacturer Warranty
3 Years
SVHC
To Be Advised
