A101SYZQ04
Toggle Switch, On-On, SPDT, Non Illuminated, Gemini A Series, Panel Mount, 5 A

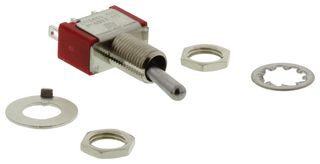

Image is for illustrative purposes only. Please refer to product description.
ManufacturerALCOSWITCH - TE CONNECTIVITY
Manufacturer Part NoA101SYZQ04
Newark Part No.69K7055
Product RangeGemini A Series
Technical Datasheet
90 In Stock
2,000 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $4.480 |
| 10+ | $3.930 |
| 25+ | $3.870 |
| 50+ | $3.790 |
| 100+ | $3.730 |
| 500+ | $3.280 |
| 1000+ | $3.250 |
| 2500+ | $3.220 |
Price for:Each
Minimum: 1
Multiple: 1
$4.48
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerALCOSWITCH - TE CONNECTIVITY
Manufacturer Part NoA101SYZQ04
Newark Part No.69K7055
Product RangeGemini A Series
Technical Datasheet
Switch OperationOn-On
Contact ConfigurationSPDT
IlluminationNon Illuminated
Product RangeGemini A Series
Switch MountingPanel Mount
Contact Current Max5A
Contact Voltage AC Nom120V
Switch TerminalsSolder
Contact Voltage DC Nom28V
SVHCLead
Product Overview
The A101SYZQ04 is a single-pole double-throw bat long Toggle Switch with silver-plated copper alloy wire lug terminations/contact and 1/4-40 threaded 0.35-inch (8.9mm) long nickel-plated brass alloy bushing. The toggle switch comes with nickel-plated brass alloy actuator, thermoplastic case, phenolic internal actuator and tin-plated brass support bracket.
- Epoxy seal
- Stainless steel frame
- 10mΩ at 2 to 4VDC/100mA Maximum contact resistance
- 1000MΩ Insulation resistance
- 1000VRMS at sea level Dielectric strength
- IP67 Protection rating
- -30 to +85°C Operating temperature range
Applications
Industrial, Audio, Lighting, Medical, Sensing & Instrumentation, Communications & Networking
Technical Specifications
Switch Operation
On-On
Illumination
Non Illuminated
Switch Mounting
Panel Mount
Contact Voltage AC Nom
120V
Contact Voltage DC Nom
28V
Contact Configuration
SPDT
Product Range
Gemini A Series
Contact Current Max
5A
Switch Terminals
Solder
SVHC
Lead
Technical Docs (3)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
