A108P3ZQ04
Toggle Switch, On-(On), SPST, Non Illuminated, Gemini A Series, Through Hole, 5 A

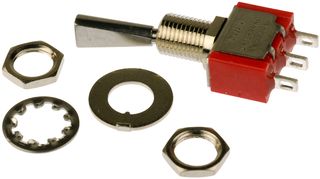

Image is for illustrative purposes only. Please refer to product description.
ManufacturerALCOSWITCH - TE CONNECTIVITY
Manufacturer Part NoA108P3ZQ04
Newark Part No.80K0975
Product RangeGemini A Series
Technical Datasheet
2,049 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.570 |
| 10+ | $2.570 |
| 25+ | $2.570 |
| 50+ | $2.570 |
| 100+ | $2.570 |
| 250+ | $2.570 |
| 500+ | $2.570 |
Price for:Each
Minimum: 1
Multiple: 1
$2.57
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerALCOSWITCH - TE CONNECTIVITY
Manufacturer Part NoA108P3ZQ04
Newark Part No.80K0975
Product RangeGemini A Series
Technical Datasheet
Switch OperationOn-(On)
Contact ConfigurationSPST
IlluminationNon Illuminated
Product RangeGemini A Series
Switch MountingThrough Hole
Contact Current Max5A
Contact Voltage AC Nom120V
Switch TerminalsSolder
Contact Voltage DC Nom28V
SVHCLead
Product Overview
The A108P3ZQ04 is a single-pole single-throw Toggle Switch with silver-plated copper contact, nickel-plated brass threaded bushing, diallylphthalate (DAP) case, stainless steel frame, nickel-plated phenolic actuator, chrome-plated brass lever, tin-plated brass support bracket, solder mounting and terminal seal (epoxy).
- 10mΩ at 2 to 4VDC/100mA Contact resistance
- 1000MΩ Insulation resistance
- 1000VRMS at sea level Dielectric strength
- -30 to +85°C Operating temperature range
Applications
Industrial
Technical Specifications
Switch Operation
On-(On)
Illumination
Non Illuminated
Switch Mounting
Through Hole
Contact Voltage AC Nom
120V
Contact Voltage DC Nom
28V
Contact Configuration
SPST
Product Range
Gemini A Series
Contact Current Max
5A
Switch Terminals
Solder
SVHC
Lead
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
