1658685-1
D Sub Connector Housing, 78 Positions, High Density D Sub, DD, AMPLIMITE HDP-22 Series

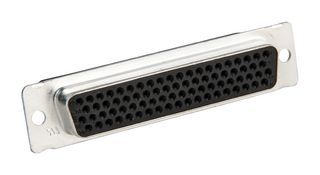

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No1658685-1
Newark Part No.76K0887
Product RangeAMPLIMITE HDP-22 Series
Your Part Number
Technical Datasheet
252 In Stock
Need more?
88 Delivery in 1-3 Business Days(US stock)
164 Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $12.640 |
| 10+ | $12.050 |
| 25+ | $10.850 |
| 50+ | $10.650 |
| 100+ | $10.470 |
| 250+ | $10.390 |
Price for:Each
Minimum: 1
Multiple: 1
$12.64
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No1658685-1
Newark Part No.76K0887
Product RangeAMPLIMITE HDP-22 Series
Technical Datasheet
No. of Positions78Positions
Connector TypeHigh Density D Sub
Connector Shell SizeDD
Product RangeAMPLIMITE HDP-22 Series
Connector Body MaterialMetal Body
For Use WithHDP-22 Series D Sub Connectors
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 1658685-1 is a 78-position shielded Snap-In Crimp Connector with tin-plated copper contact and steel body. The Amplimite HDP-22 series connector shell is made of tin-plated steel and has 5 shell size. The receptacle has thermoplastic insert and black GF nylon housing.
- 22 Contact size
- High performance, precision formed crimp contacts
Applications
Commercial, Defence, Military & Aerospace
Technical Specifications
No. of Positions
78Positions
Connector Shell Size
DD
Gender
Receptacle
For Use With
HDP-22 Series D Sub Connectors
Connector Type
High Density D Sub
Product Range
AMPLIMITE HDP-22 Series
Connector Body Material
Metal Body
SVHC
No SVHC (21-Jan-2025)
Alternatives for 1658685-1
1 Product Found
Associated Products
8 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
