                      1. Home
                      2. Connectors
                      3. D Sub Connectors & Components
                      4. D Sub Connectors
                      Print Page

                      10090769-P264ALF

                      D Sub Connector, HD26, 26 Contacts, Plug, Solder Cup, DA, FCI 10090769 Series, Steel Body

                      Date/Lot Code

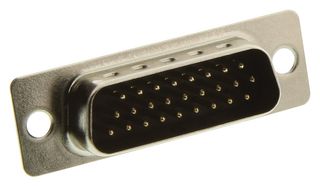

                      AMPHENOL COMMUNICATIONS SOLUTIONS 10090769-P264ALF
                      AMPHENOL COMMUNICATIONS SOLUTIONS 10090769-P264ALF
                      AMPHENOL COMMUNICATIONS SOLUTIONS 10090769-P264ALF
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerAMPHENOL COMMUNICATIONS SOLUTIONS
                      Manufacturer Part No10090769-P264ALF
                      Newark Part No.82R7072
                      Product RangeFCI 10090769 Series
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      55 In Stock

                      Need more?

                      Same day shipping
                      Order before 9pm EST standard shipping
                      QuantityPrice
                      1+$2.070
                      10+$1.810
                      25+$1.730
                      50+$1.620
                      100+$1.490
                      250+$1.460
                      500+$1.360
                      1000+$1.220
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      $2.07
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerAMPHENOL COMMUNICATIONS SOLUTIONS
                      Manufacturer Part No10090769-P264ALF
                      Newark Part No.82R7072
                      Product RangeFCI 10090769 Series
                      Technical Datasheet

                      Data Sheet

                      D Sub Connector TypeHigh Density
                      GenderPlug(View Associated Connectors)
                      Product RangeFCI 10090769 Series
                      No. of Contacts26Contacts
                      D Sub Shell SizeDA
                      Contact Termination TypeSolder Cup
                      Connector MountingCable Mount
                      Contact MaterialCopper Alloy
                      Contact PlatingGold Plated Contacts
                      Connector Body MaterialSteel Body
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      The 10090769-P264ALF is a 26-position high density D-sub Plug with gold-plated copper alloy contact, nickel-plated carbon steel shell and black glass filled thermoplastic (UL94V-0) insulator. Solder contact termination.

                      • 2.5A Current rating
                      • 250V Voltage
                      • 250mΩ Contact resistance
                      • 5000MΩ Insulation resistance
                      • 750V Dielectric voltage

                      Applications

                      Computers & Computer Peripherals

                      Technical Specifications

                      D Sub Connector Type

                      High Density

                      Product Range

                      FCI 10090769 Series

                      D Sub Shell Size

                      DA

                      Connector Mounting

                      Cable Mount

                      Contact Plating

                      Gold Plated Contacts

                      SVHC

                      No SVHC (21-Jan-2025)

                      Gender

                      Plug

                      No. of Contacts

                      26Contacts

                      Contact Termination Type

                      Solder Cup

                      Contact Material

                      Copper Alloy

                      Connector Body Material

                      Steel Body

                      Technical Docs (5)

                      Enhanced Product Overview EN

                      Product Change Notice EN

                      CAD Multiple Formats EN

                      Manufacturer Catalogue EN

                      Technical Data Sheet EN

                      Associated Products

                      6 Products Found

                      Legislation and Environmental

                      US ECCN:EAR99
                      EU ECCN:Unknown
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (21-Jan-2025)
                      Download Product Compliance Certificate

                      Product Compliance Certificate

                      Product traceability

                      Date/Lot Code
