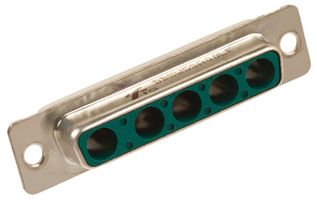

DB5W5SA00LF

The DB5W5SA00LF is a 5-way D-sub Power Cable Connector with gold-plated copper alloy contacts. The D-subminiature power connector range is a standard interface widely used in many market segments. The connector form factors are directly inspired by those of the traditional D-subminiature signal connectors, long used as standard I/O connectors in many types of electronic equipment. The power connectors are also principally used for I/O solutions because of their robust and shielded design. It is suitable for applications such as set-top box, energy meters and control devices.

• Black glass filled thermoplastic insulator
• D-shaped shell design
• Designed for less demanding applications
• UL94V-0 Flammability rating
• Stamped and formed contacts
• 5A Current rating
• 250V Rated voltage
• Initial 7.3mΩ Contact resistance (per contact)
• 5000MΩ Minimum insulation resistance

Applications

Communications & Networking, Sensing & Instrumentation, Industrial, Medical, Defence, Military & Aerospace, Consumer Electronics

Notes

Power contacts are sold and assembled separately.
