AD-05AFFM-QL8D01
Circular Cable Assembly, 5A, IP68, Circular 5 Position Receptacle, Free End, 3.3 ft, 1 m

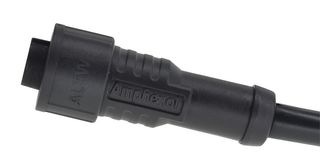

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMPHENOL LTW
Manufacturer Part NoAD-05AFFM-QL8D01
Newark Part No.69AC1947
Product RangeX-Lok Series
Technical Datasheet
9 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $9.010 |
| 5+ | $9.010 |
| 10+ | $9.010 |
| 25+ | $9.010 |
| 50+ | $9.010 |
| 100+ | $9.010 |
| 250+ | $9.010 |
Price for:Each
Minimum: 1
Multiple: 1
$9.01
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL LTW
Manufacturer Part NoAD-05AFFM-QL8D01
Newark Part No.69AC1947
Product RangeX-Lok Series
Technical Datasheet
Connector Type ACircular 5 Position Receptacle
Connector to ConnectorCircular Receptacle to Free End
Connector Type BFree End
No. of Positions5Positions
Cable Length - Imperial3.3ft
Cable Length - Metric1m
Jacket Color-
Product RangeX-Lok Series
SVHCNo SVHC (17-Jan-2023)
Product Overview
Amphenol LTW is pleased to introduce its extended quick lock product, X-Lok Mini Size, a small and light-weight IP68 waterproof connector with push-lock mechanism design, facilitates fast, easy and space-saving connection that is ideal for applications where operation space is limited. With audible feedback and guided key design, X-Lok Mini Size ensures error-proof and easy assembly upon installation.
- Current Rating: 5A
- With Strain Relief
- Push Lock
- UL21388 Cable-Data Group
- With Female contacts
- Overmolded with cable
- UL 94-V0
Applications
Automotive, Factory Automation, Industrial, Industrial Automation, LED Lighting, Manufacturing, Marine, Renewable Energy, Security
Technical Specifications
Connector Type A
Circular 5 Position Receptacle
Connector Type B
Free End
Cable Length - Imperial
3.3ft
Jacket Color
-
SVHC
No SVHC (17-Jan-2023)
Connector to Connector
Circular Receptacle to Free End
No. of Positions
5Positions
Cable Length - Metric
1m
Product Range
X-Lok Series
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
