083-1SP-15RFX

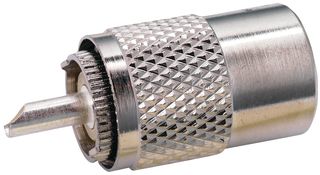

The 83-1SP-15RFX is a RF Connector, UHF series, UHF straight solder Plug with silver-plated brass contacts and solder contact termination. Body made up of brass with nickel-plated finish and PTFE insulator. The UHF coaxial connector is general purpose units developed for use in low frequency system of 300MHz. UHF connector is popularly used because of its ease of assembly. The UHF solderable screw-on termination feature requires no specialized crimping tools. This RF connector is designed for RG-213, RG-214, RG-225, RG-302, RG-393 and RG-8 cable.

• Large-size threaded coupling is a rugged design
• Standard polarity
• Standard thread direction
• 500V Peak voltage rating
• 500 Mating cycles
• -65 to 165°C Temperature range

Applications

RF Communications, Communications & Networking, Defence, Military & Aerospace
