122116
RF / Coaxial Connector, TNC Coaxial, Straight Plug, Crimp, 50 ohm, RG174, RG316, LMR-100, Brass
80 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | $5.530 |
| 10+ | $5.240 |
| 25+ | $4.790 |
| 50+ | $4.600 |
| 100+ | $4.410 |
| 250+ | $3.940 |
| 500+ | $3.850 |
| 1000+ | $3.390 |
Product Information
Product Overview

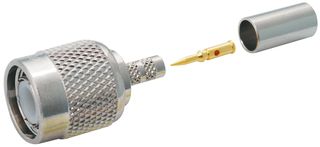

The 122116 is a straight crimp TNC Plug with gold-plated brass contacts. This connector is made of brass with nickel-plated finish and a Delrin insulator. The TNC is a miniature, threaded weatherproof connector with a constant 50Ω impedance and a frequency range of 11GHz. This TNC connector is produced with standard polarity. Threaded coupling interface ensures connector with not de-couple in vibration-intense applications. This RF connector is designed for LMR-100, M17/119-RG174, RG-174, RG-188, RG-188A and RG-316 cable.
- Standard thread direction
- Durable construction
- 5000MΩ Minimum insulation resistance
- 500V Peak voltage rating
- 500 Mating cycles
Applications
RF Communications, Industrial, Wireless, Defence, Military & Aerospace, Sensing & Instrumentation, Communications & Networking
Technical Specifications
TNC Coaxial
Crimp
RG174, RG316, LMR-100
Gold Plated Contacts
Cable Mount
Lead
Straight Plug
50ohm
Brass
11GHz
-
