| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | AD9164-FMCC-EBZCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Newark Part No. | 49AK9822 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | $1,273.950 |
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | AD9164-FMCC-EBZCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Newark Part No. | 49AK9822 |
| Technical Datasheet | |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | AD9164 |
| Kit Application Type | Data Converter |
| Application Sub Type | DAC |

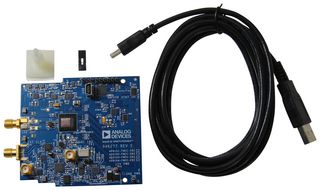

| Kit Contents | Evaluation Board AD9164, Mini USB cable, Software DVD |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
AD9164-FMCC-EBZ is an evaluation board to evaluate the AD9164 high speed, RF DAC. The evaluation board connects to an ADS7-V2EBZ pattern generator for quick evaluation of the AD9164, high speed, RF digital-to-analog converter (RF DAC). The ADS7-V2EBZ automatically formats the data and sends it to the evaluation board, which simplifies evaluation of the device. The evaluation board runs from the FPGA mezzanine card (FMC) power supply.
- Full featured evaluation board for the AD9164
- ACE software for control
- Direct clocking vs. on-board clocking
- 11mm x 11mm package with Mini-Circuits balun on DAC output
Contents
AD9164-FMC-EBZ evaluation board, Mini USB cable, Software DVD.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Technical Specifications
| Silicon Manufacturer | Analog Devices |
|---|---|
| Kit Application Type | Data Converter |
| Kit Contents | Evaluation Board AD9164, Mini USB cable, Software DVD |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Core Number | AD9164 |
|---|---|
| Application Sub Type | DAC |
| Product Range | - |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
