M22520/1-01

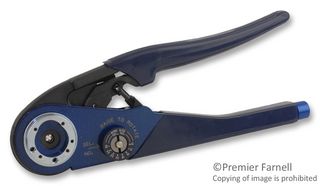

Crimp Tool, Frame, Ratchet, Turret head, positioner or universal head
Image is for illustrative purposes only. Please refer to product description.
15 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $718.290 |
| 2+ | $647.870 |
Price for:Each
Minimum: 1
Multiple: 1
$718.29
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerASTRO TOOL
Manufacturer Part NoM22520/1-01
Newark Part No.90B3914
Technical Datasheet
Crimp Tool TypeRatchet
For Use WithTurret head, positioner or universal head
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The M22520/1-01 is a 8-step standard adjustable Crimp Tool is designed to be used with a turret head, a positioner or universal head. These heads are easily attached with the use of built in hex socket screws. A data plate is permanently attached to each head. The data plate lists the contacts, for which the head was designed, along with selector settings that correspond to the wire being used. The 615708 crimp tool is compatible with turret and single position heads for consistent crimp location.
- Full cycle-controlled ratchet
- Crimps wire barrel sizes 12 through 20
Applications
Maintenance & Repair
Technical Specifications
Crimp Tool Type
Ratchet
Product Range
-
For Use With
Turret head, positioner or universal head
SVHC
No SVHC (21-Jan-2025)
