Product Information
ManufacturerAUTONICS
Manufacturer Part NoCT6Y-I4
Newark Part No.22T1030
Product RangeCT Series
Technical Datasheet
No. of Digits / Alpha6
Digit Height10mm
Supply Voltage Min100VAC
Supply Voltage Max240VAC
Panel Cutout Height33mm
Panel Cutout Width68mm
Operating Temperature Min-10°C
Operating Temperature Max55°C
Product RangeCT Series
SVHCTo Be Advised
Product Overview

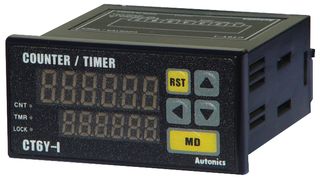

The CT6Y-I4 is a 240VAC 6-digit touch type Digital Counter/Timer with prescale function and high speed counting of 10kcps. Selectable voltage input (PNP) or no voltage input (NPN) with able to set on/off time individually in flicker (FLK) mode and key lock function.
- DIN size - (W) 72 x (H) 36mm
Applications
Sensing & Instrumentation
Technical Specifications
No. of Digits / Alpha
6
Supply Voltage Min
100VAC
Panel Cutout Height
33mm
Operating Temperature Min
-10°C
Product Range
CT Series
Digit Height
10mm
Supply Voltage Max
240VAC
Panel Cutout Width
68mm
Operating Temperature Max
55°C
SVHC
To Be Advised
