                      1. Home
                      2. Test & Measurement
                      3. Test Equipment Accessories
                      4. Switch System Cards & Multiplexers
                      Print Page

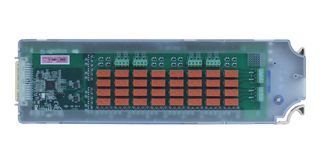

                      DM304

                      Test Accessory, 300V, 32-Ch, 4 x 8 Two-Wire Matrix Switch Module

                      B&K PRECISION DM304
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerB&K PRECISION
                      Manufacturer Part NoDM304
                      Newark Part No.25AM8863
                      Product RangeDAQ3120 Series
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      1 In Stock

                      Need more?

                      Same day shipping
                      Order before 9pm EST standard shipping
                      QuantityPrice
                      1+$624.750
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      $624.75
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerB&K PRECISION
                      Manufacturer Part NoDM304
                      Newark Part No.25AM8863
                      Product RangeDAQ3120 Series
                      Technical Datasheet

                      Data Sheet

                      Accessory Type4 x 8 Two-Wire Matrix Switch Module
                      For Use WithB&K Precision DAQ3120 Series Data Acquisition Systems
                      Product RangeDAQ3120 Series
                      SVHCNo SVHC (07-Nov-2024)

                      Product Overview

                      DM304 4 x 8 matrix is a dedicated switch module providing up to 32 cross-points in a 4 row by 8 column matrix. This module allows different test equipment to connect to multiple points on the device under test (DUT) at the same time. Additional DM304 modules can be wired together to expand the number of rows or columns, reaching up to 96 cross-points.

                      • 32 2-wire cross-points
                      • 3ms switching speed
                      • 300 V and 1A maximum
                      • Expandable to 96 cross-points
                      • 2-wire armature switching
                      • 10MHz bandwidth
                      • 300V maximum voltage

                      Technical Specifications

                      Accessory Type

                      4 x 8 Two-Wire Matrix Switch Module

                      Product Range

                      DAQ3120 Series

                      For Use With

                      B&K Precision DAQ3120 Series Data Acquisition Systems

                      SVHC

                      No SVHC (07-Nov-2024)

                      Technical Docs (1)

                      Technical Data Sheet EN

                      Associated Products

                      2 Products Found

                      Legislation and Environmental

                      US ECCN:Unknown
                      EU ECCN:Unknown
                      RoHS Compliant:To be advised
                      RoHS Phthalates Compliant:To be advised
                      SVHC:No SVHC (07-Nov-2024)
                      Download Product Compliance Certificate

                      Product Compliance Certificate
