QS18VP6LPQ5
Photoelectric Sensor, World Beam, QS18 Series, 3.5 m, PNP, 10 V to 30 V, Quick Disconnect

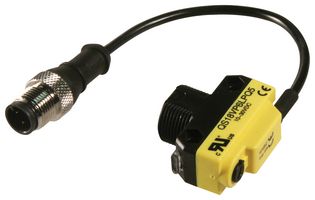

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBANNER ENGINEERING
Manufacturer Part NoQS18VP6LPQ5
Newark Part No.21H6071
Technical Datasheet
37 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $118.430 |
Price for:Each
Minimum: 1
Multiple: 1
$118.43
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBANNER ENGINEERING
Manufacturer Part NoQS18VP6LPQ5
Newark Part No.21H6071
Technical Datasheet
Sensor TypePhotoelectric Sensor
Sensing Distance Max3.5m
Sensing MethodPolarized Retroreflective
Output TypePNP
Product Range-
Connection Method4 Pin M12 Pigtail Connector
Supply Voltage Min10VDC
Supply Voltage Max30VDC
Light Source630nm Red LED
Qualification-
IP RatingIP67
Operating Temperature Min-20°C
Operating Temperature Max70°C
SVHCNo SVHC (15-Jan-2018)
Product Overview
The QS18VP6LPQ5 is a miniature self-contained polarized retroreflective mode Photoelectric Sensor in universal housing. The WORLD-BEAM QS18 series 63188 sensor easily fits (or retrofits) almost any mounting situation. It provides exceptional optical performance, comparable to larger MINI-style or barrel sensors. 10 to 30VDC operation, with complementary (SPDT) PNP outputs. Bright LED operating status indicators is visible from 360°.
- 630nm Visible red
- 6 Pigtail EURO-style quick-disconnect connector
- Rugged sealed housing, protected circuitry
- Less than 1 millisecond output response for excellent sensing repeatability
Applications
Sensing & Instrumentation, Medical
Technical Specifications
Sensor Type
Photoelectric Sensor
Sensing Method
Polarized Retroreflective
Product Range
-
Supply Voltage Min
10VDC
Light Source
630nm Red LED
IP Rating
IP67
Operating Temperature Max
70°C
Sensing Distance Max
3.5m
Output Type
PNP
Connection Method
4 Pin M12 Pigtail Connector
Supply Voltage Max
30VDC
Qualification
-
Operating Temperature Min
-20°C
SVHC
No SVHC (15-Jan-2018)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
