MRG5800.10100

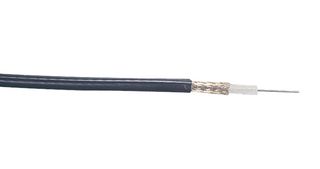

Coaxial Cable, RG58, 50 ohm, 328 ft, 100 m
Image is for illustrative purposes only. Please refer to product description.
15 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $218.510 |
| 5+ | $210.500 |
| 10+ | $203.640 |
Price for:Spool of 100
Minimum: 1
Multiple: 1
$218.51
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBELDEN
Manufacturer Part NoMRG5800.10100
Newark Part No.60R4559
Technical Datasheet
Coaxial Cable TypeRG58C/U
Wire Gauge21AWG
Conductor Area CSA-
Impedance50ohm
Reel Length (Imperial)328ft
Reel Length (Metric)100m
Jacket ColorBlack
Jacket MaterialPVC
Conductor MaterialTinned Copper
No. of Max Strands x Strand Size19 x 0.18mm
External Diameter4.95mm
Product Range-
SVHCNo SVHC (10-Jun-2022)
Product Overview
The MRG5800.10100 is a 100m Transmission Cable with stranded (19 x 0.18) tinned copper inner conductor, PE dielectric, braid outer conductor and a black PVC jacket. This transmission cable is used for low and high power radio frequency (RF) connections.
- 100pF/m Conductor to shield nominal capacitance
- 66% Nominal velocity of propagation
- 52Ω/km Maximum DC loop resistance
- -15 to 70°C Operating temperature range
Applications
RF Communications
Technical Specifications
Coaxial Cable Type
RG58C/U
Conductor Area CSA
-
Reel Length (Imperial)
328ft
Jacket Color
Black
Conductor Material
Tinned Copper
External Diameter
4.95mm
SVHC
No SVHC (10-Jun-2022)
Wire Gauge
21AWG
Impedance
50ohm
Reel Length (Metric)
100m
Jacket Material
PVC
No. of Max Strands x Strand Size
19 x 0.18mm
Product Range
-
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
Download Product Compliance Certificate
Product Compliance Certificate
