1-1776293-2
Panel Mount Barrier Terminal Block, 2 Row, 12 Positions, 22 AWG, 12 AWG, 8 mm, 30 A

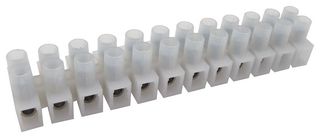

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBUCHANAN - TE CONNECTIVITY
Manufacturer Part No1-1776293-2Copy
Manufacturer Standard Lead Time14 weeks
Newark Part No.58Y3969
Your Part Number
134 In Stock
Need more?
Delivery in 4-6 Business Days(UK stock)
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $17.900 |
| 5+ | $16.730 |
| 10+ | $15.550 |
| 25+ | $13.680 |
| 50+ | $12.670 |
| 100+ | $12.110 |
| 250+ | $9.990 |
Price for:Each
Minimum: 1
Multiple: 1
$17.90
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerBUCHANAN - TE CONNECTIVITY
Manufacturer Part No1-1776293-2Copy
Manufacturer Standard Lead Time14 weeks
Newark Part No.58Y3969
Technical Datasheet
No. of Rows2 Row
No. of Positions12Positions
Wire Size AWG Min22AWG
Wire Size AWG Max12AWG
Pitch Spacing8mm
Rated Current30A
Rated Voltage250V
Product Range-
SVHCLead (10-Jun-2022)
Product Overview
The 1-1776293-2 is a 12-position 30A natural panel-mount Barrier Terminal Block for use with the panels. It is made up of polyamide 6.6 housing with tin-plated brass terminals and a bright zinc chromate steel screw.
- M3 Screw connection
- UL94V-2 Flammability
Applications
Industrial
Technical Specifications
No. of Rows
2 Row
Wire Size AWG Min
22AWG
Pitch Spacing
8mm
Rated Voltage
250V
SVHC
Lead (10-Jun-2022)
No. of Positions
12Positions
Wire Size AWG Max
12AWG
Rated Current
30A
Product Range
-
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (10-Jun-2022)
