E101MD1AV2BE

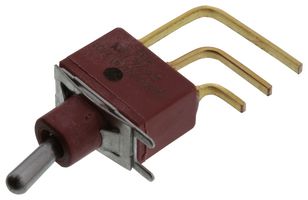

Toggle Switch, On-None-On, SPDT, Non Illuminated, E Series, Through Hole
Image is for illustrative purposes only. Please refer to product description.
ManufacturerC&K COMPONENTS
Manufacturer Part NoE101MD1AV2BECopy
Manufacturer Standard Lead Time10 weeks
Newark Part No.34AH9760
Product RangeE Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 80+ | $14.240 |
| 100+ | $12.970 |
| 250+ | $12.020 |
Price for:Each
Minimum: 80
Multiple: 80
$1,139.20
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerC&K COMPONENTS
Manufacturer Part NoE101MD1AV2BECopy
Manufacturer Standard Lead Time10 weeks
Newark Part No.34AH9760
Product RangeE Series
Technical Datasheet
Switch OperationOn-None-On
Contact ConfigurationSPDT
Product RangeE Series
Switch MountingThrough Hole
Contact Current Max-
Contact Voltage AC Nom20V
Switch TerminalsPC Pin, Right Angle
Contact Voltage DC Nom20V
SVHCLead (19-Jan-2021)
Product Overview
The E series sealed Miniature Toggle Switch used for protection against harmful dust deposit, full-scale voltage protection and temporary immersion. It has sealed against solder and cleaning process contaminants. It is process sealed to withstand machine soldering temperatures and pressure wash cleaning methods.
- UL94V-0 Flammability rating
- Multi-positions
- ESD protection available
Technical Specifications
Switch Operation
On-None-On
Product Range
E Series
Contact Current Max
-
Switch Terminals
PC Pin, Right Angle
SVHC
Lead (19-Jan-2021)
Contact Configuration
SPDT
Switch Mounting
Through Hole
Contact Voltage AC Nom
20V
Contact Voltage DC Nom
20V
Technical Docs (2)
Alternatives for E101MD1AV2BE
1 Product Found
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (19-Jan-2021)
