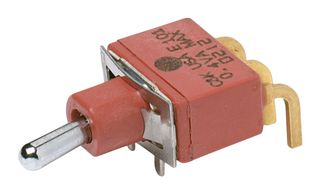

Toggle Switch, Miniature, On-None-On, 3PDT, Non Illuminated, E Series, Through Hole, 7.5 A
Image is for illustrative purposes only. Please refer to product description.
ManufacturerC&K COMPONENTS
Manufacturer Part NoE301MD1AGECopy
Manufacturer Standard Lead Time8 weeks
Newark Part No.35AH0287
Product RangeE Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 8 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 80+ | $30.400 |
| 100+ | $29.500 |
| 250+ | $28.600 |
Price for:Each
Minimum: 80
Multiple: 80
$2,432.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerC&K COMPONENTS
Manufacturer Part NoE301MD1AGECopy
Manufacturer Standard Lead Time8 weeks
Newark Part No.35AH0287
Product RangeE Series
Technical Datasheet
Switch OperationOn-None-On
Contact Configuration3PDT
IlluminationNon Illuminated
Product RangeE Series
Switch MountingThrough Hole
Contact Current Max7.5A
Contact Voltage AC Nom125V
Switch TerminalsPC Pin
Contact Voltage DC Nom28V
SVHCNo SVHC (15-Jan-2018)
Product Overview
E301MD1AGE is an E series sealed miniature 3P, on-none-on, toggle switch. Typical applications include telecommunications, instrumentation and medical equipment.
- 0.3inch high actuator and 0.25inch high bushing
- Right angle, PC thru-hole terminations
- Gold over silver contact material and epoxy seal
- 30,000 cycles electrical life
- 5A at 125V AC or 28V DC
- 1000Vrms min at sea level dielectric strength
- Operating temperature range from -30°C to 85°C
- IP57 protection against harmful dust deposit, full-scale voltage protection, temporary immersion
- Sealed against solder and cleaning process contaminants
- UL 94V-0 nylon case and bushing
Technical Specifications
Switch Operation
On-None-On
Illumination
Non Illuminated
Switch Mounting
Through Hole
Contact Voltage AC Nom
125V
Contact Voltage DC Nom
28V
Contact Configuration
3PDT
Product Range
E Series
Contact Current Max
7.5A
Switch Terminals
PC Pin
SVHC
No SVHC (15-Jan-2018)
