9002-05-01
Reed Relay, SPST-NO, 5 VDC, 9000 Series, Through Hole, 350 ohm, 500 mA

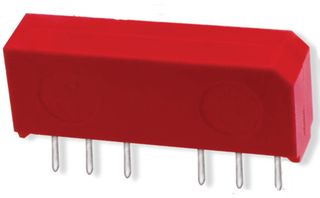

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCOTO TECHNOLOGY
Manufacturer Part No9002-05-01
Newark Part No.62K1752
Product Range9000 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 26 week(s)
| Quantity | Price |
|---|---|
| 250+ | $5.780 |
Price for:Each
Minimum: 1225
Multiple: 25
$7,080.50
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCOTO TECHNOLOGY
Manufacturer Part No9002-05-01
Newark Part No.62K1752
Product Range9000 Series
Technical Datasheet
Contact ConfigurationSPST-NO
Coil Voltage5VDC
Product Range9000 Series
Relay MountingThrough Hole
Coil Resistance350ohm
Switching Current Max500mA
Switching Voltage Max200V
Approvals & StandardsCSA, UL
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 9000 series Moulded SIP Reed Relay with high performance. The SIP relay is the industry standard when high reliability and consistent performance is desired. It is a high performance relay ideally suited for automatic test equipment and many more applications. The specification tables allow selecting the appropriate relay for your application.
- High dielectric strength available
- High speed switching compared to electromechanical relays
- Moulded thermoset body on integral lead frame design
- Optional coil suppression diode protects coil drive circuits
- High insulation resistance - 10¹²Ω minimum (10¹³Ω typical)
- High reliability, hermetically sealed contacts for long life (tested to 1 billion operations)
Applications
Industrial, Automation & Process Control, Test & Measurement, Sensing & Instrumentation, RF Communications, Communications & Networking
Technical Specifications
Contact Configuration
SPST-NO
Product Range
9000 Series
Coil Resistance
350ohm
Switching Voltage Max
200V
SVHC
No SVHC (21-Jan-2025)
Coil Voltage
5VDC
Relay Mounting
Through Hole
Switching Current Max
500mA
Approvals & Standards
CSA, UL
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
