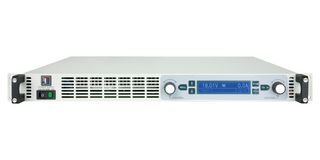

EA-PS 9360-15 1U

Microprocessor controlled programmable laboratory DC power supply of series EA-PS 9000 1U offers many functions and features in their standard version, making the use of this equipment remarkably easy and most effective. All this comes in a flat design with only 1.73inch of height. The clearly arranged control panel features two rotary knobs, six pushbuttons and two LEDs. Together with an illuminated, blue LCD display for all values and status, it simplifies the use of the device.

• Flexible, power regulated output stage, various protection circuits (OVP, OCP, OPP, OTP)
• Control panel with pushbuttons and blue LCD for actual values, set values, status and alarms
• Remote sensing, share bus for support of parallel connection
• Galvanically isolated, analog interface with very low height of only 1 U (44mm)
• Temperature controlled fans for cooling, USB and Ethernet port integrated
• EMC according to EN 55022 class B, SCPI command language supported
• 100 to 264VAC, 1ph, PF = 0.99 input voltage, 0-360V output voltage rating, 0 to 15A current rating
• 0 to 1500W power rating, ≤94% efficiency
• Operation temperature rating range from 0 to 50°C
• Dimension (W x H x D) is (19“ x 1 HE/U x 500mm)
